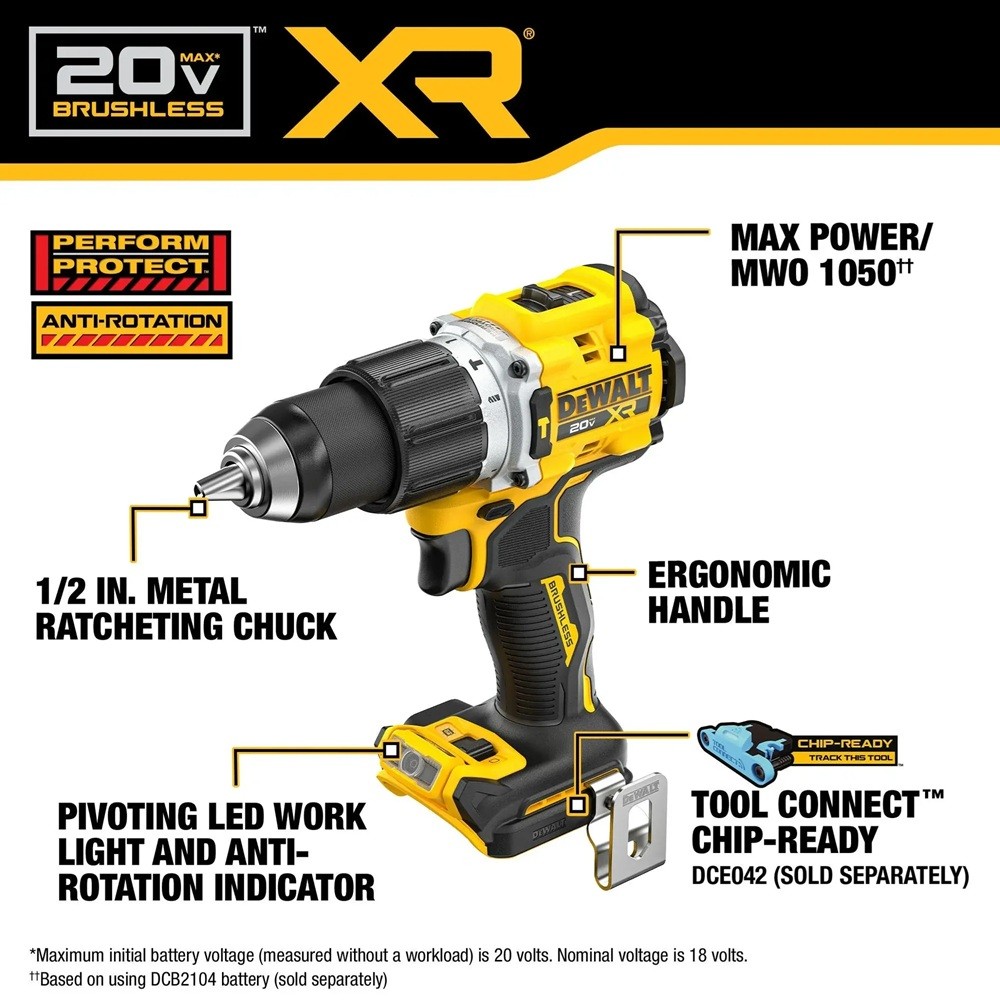

our most powerful 20V MAX* 2-speed hammer drill**. Make up to 175 holes per charge†† with this solution engineered up to 109% more powerful†. Equipped with the ANTI-ROTATION System that senses the rotational motion of the tool and shuts it down if the motion is excessive, this tool helps maximize control on demanding jobs. Featuring a high-speed transmission, a variable speed trigger with 2 speed settings, and an integrated hammer mode function this drill makes quick work of masonry drilling applications. Work confidently with a 1/2 in. metal ratcheting chuck and illuminate dim work areas with an integrated 3-position LED. As a part of our best performing line of 20V MAX* power tools, this next-generation XR® hammer drill helps you maximize productivity on tough jobs.This kit includes one 3.5Ah PowerStack battery—our most powerful, compact, and efficient battery technology to date—plus theDCB1104 Charger for fast charging, so you can stay productive on the job.


FEATURES:
- Our Most Powerful 20V MAX 2-Speed Hammer Drill* – Up to 109% more powerful† than previous models.
- Enhanced Control – ANTI-ROTATION System detects and shuts off during excessive tool rotation for safer operation.
- Up to 25% More Powerful vs. Milwaukee* – A true competitive edge in performance.
- Extended Runtime – Drill up to175 holes per charge††.
- Professional Speed & Precision – High-speed transmission and2-speed variable trigger (0–650 / 0–2,000 RPM).
- Integrated 3-Position LED Worklight – Adjustable brightness up to70 lumens, with auto shut-off.
- Secure Bit Holding –1/2 in. metal ratcheting chuck offers maximum bit retention.
- TOOL CONNECT™ CHIP READY™ – Compatible with DEWALT Site Manager™ for smart asset management.
- Part of the XR® Line – Designed for pros who demand the best in power, speed, and durability.

Specification:Voltage : 20V Max (18V)Led Light : YesBattery Type : Lithium-IonBrushless : YesNo-Load Speed :1st Gear: 0-650rpm2nd Gear: 0-2,000rpmImpact Rate :Low: 0-11,050 BPMHigh: 0-34,000 BPMMax Torque :Hard : 90 Nm Soft : 27mmChuck Capacity : 1.5 - 13 mmMax. Drilling Capacity : In Wood: 55mm / In Metal: 13mm / In Masonry: 13mmNumber of Clutch Positions: 14
What's Included1x 20V MAX* Hammer Drill Kit (Tool) DCD8061x POWERSTACK™ 3.5Ah Battery1x 12V/20V XR 4A COMPACT CHARGER1x Tstak Case
3-Year Warranty.
